Portable Filtration Units
Portable Filtration Units
Liquids –
There are six models that can be used for oils, coolants, glycols, etc. with suitable elements. These heavy-duty, rugged units are capable of full flow-through filtration across a wide micron range and dirt levels. Though filtration is possible in a single pass, recirculation ensures complete cleaning. Vigorous circulation also removes all dirt accumulated at the tank bottom (not done by ELC). Regular use of these units keeps various machine oils sparkling clean, avoids disposal, and also reduces the consumption of the original small imported filters. These can then be made of washable stainless steel mesh in sizes of 25 or 50 microns. This is the lowest-cost, safest option without maintenance problems.
A typical use of 4–8 hours once a month can serve 25–50 machines. This is the ideal choice for the shop floor of the engineering industry. A comparison is given with other types. Target dirt level (w/o ELC) < 10 mg/lit, NAS < 7. (ELC can be used for further reduction if required.) Using a centrifugal pump and epoxy-coated housing, the unit can be used for aq, coolant, and other liquids.
Portable Oil Filter unit – Model 1 - 1 stage , Model 1D - 2 Stage
Specifications
| Rating | 40 LPM, 7 Bar, 40oC, 1-500 micron |
|---|---|
| The Unit Consists Of | Filter Housing (FH-31): 200 ID x 600 mm L, 1" connections, MS + PU paint |
| Pump: CI, gear type with motor (1 HP, 3 Ph, 50/60 Hz, 1440/1730 rpm, TEFC) | |
| Interconnecting piping, base frame, castor wheels, suction/delivery hoses, pressure gauge, drain valve, vent valve, suction strainer, Electric Panel with switch fuse + starter | |
| Overall Size | 0.7 x 0.7 x 1 m. Empty weight – 100 Kg |
| Filter Element Size | 70 ID x 150 OD x 450 mm L. MS + zinc plated parts |
| Element | Media | Micron | Uses |
|---|---|---|---|
| SP-32C/D | SS Mesh | 50/25 micron, all SS | For all uses |
| CP-32A/B | Paper Media | 25/10 micron | Suitable for oils only |
| PP-32A/B | PE Felt Media | 25/10 micron | Suitable for coolant/glycol etc. |
| GP-32 | MG Media | 1-5 micron | For all uses |
Portable Oil Filter unit - Model 2 - I Stage, Model 2D - II Stage
This is designed for 2 levels of filtration and can be used independently or in series. 2 housings as above, are dedicated to specific elements, to avoid changing elements in a single unit.
Specifications
| Rating | 20 LPM, 7 Bar, 40oC, 1-500 micron |
|---|---|
| The Unit Consists Of | Filter Housing (FH-22) – 150 ID x 600 mm L, 0.5" connections, MS + PU paint. |
| Pump: CI, gear type with motor (0.5 HP, 3 Ph, 50/60 Hz, 1440/1730 rpm, TEFC) | |
| Overall Size | 0.5 x 0.5 x 0.85 m ht. Empty weight – 50 Kg |
| Spare Filter Element | Size 30 ID x 100 OD x 250 mm L – 2 reqd. |
| Element | Media | Micron | Uses |
|---|---|---|---|
| SP-21C/D | SS Mesh Media | 50/25 micron, all SS | For all uses |
| CP-21A/B | Paper Media | 25/10 micron | For oils |
| PP-21A/B | PE Felt Media | 25/10 micron | For coolant, glycol |
| GP-21 | MG Media | 5 micron | For all uses |
2 Stage Unit: Model 2D – As above with 2 housings , 2 paper + 2 MG media elements.

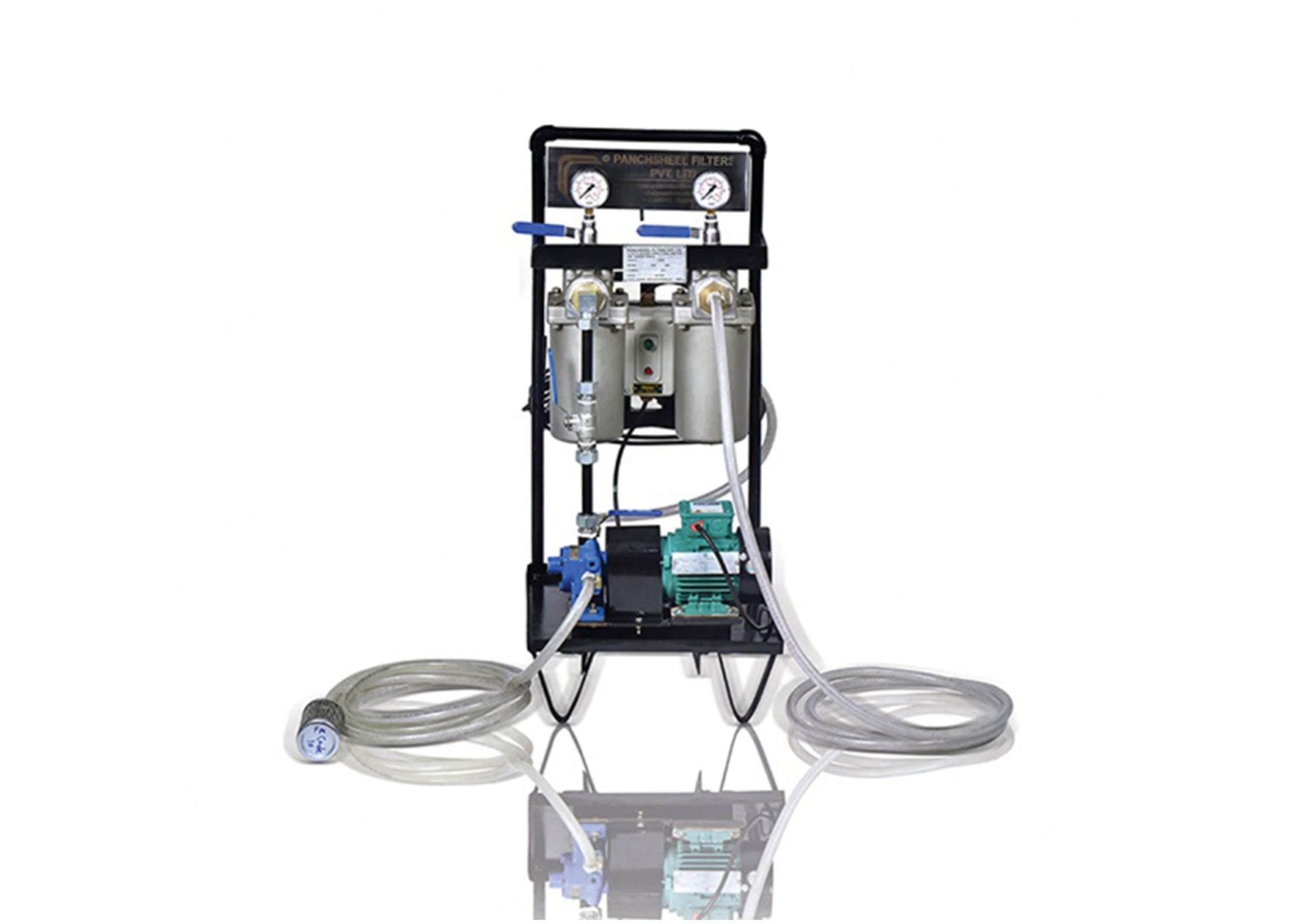

Portable Oil Filter Unit - Model 3 - I Stage, Model 3D - II Stage
Specifications
| Rating | 10 LPM, 5 Bar, 40oC, 1-500 micron |
|---|---|
| The Unit Consists Of | Filter Housing (FH-10) – 120 ID x 300 mm L, 1" connections, AL bowl type |
| Pump | CI, gear type with motor (0.25 HP, 1 Ph, 50 Hz, 1440 rpm, TEFC) |
| Overall Size | 0.4 x 0.4 x 0.6 m ht. Empty weight – 20 Kg |
| Spare Filter Element | Size 50 ID x 100 OD x 200 mm L – 1 reqd. |
| Element | Media | Micron | Uses |
|---|---|---|---|
| RF-10S | SS Mesh | 50/25 micron, all | For all uses |
| RF-10A/B | Paper Media | 25/10 micron | For oils |
| RF-10P | PE Felt Media | 25/10 micron | For coolant, glycol |
| RF-10G | MG Media | 5 micron | For all uses |
Dust Collection
Dust extraction and fine filtration is a necessity for dry grinding, cutting, and welding operations. A dust collection unit comprising a blower, filter, ducting, etc. Our unit is designed with a cyclonic chamber to knock out most of the dust, reducing the load on the collection bag and resulting in better efficiency at a much lower operating cost. The filter bag is also made extra-large for long life and smooth operation.

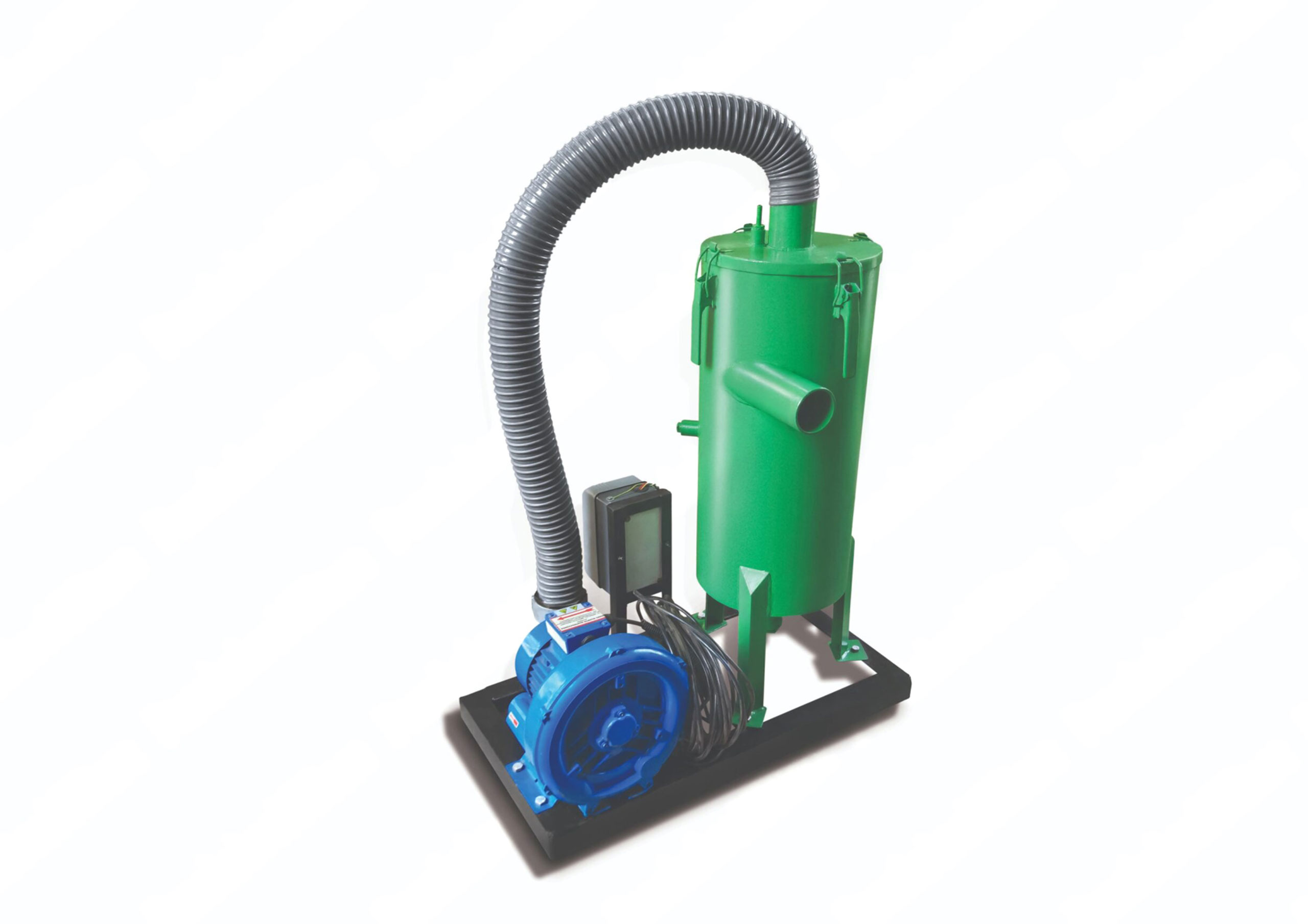

Portable Dust Extractor + Collector Unit - Model -1
Specifications
| Rating | 500 CMH, 100 mm WC, 40oC, 5-500 micron |
|---|---|
| The Unit Consists Of | Filter Housing – 3" connections |
| Filter Bag – PE felt media – 5 micron x 5 nos | |
| Blower – Centrifugal/Turbo type with motor (0.5 HP, 3 Ph, 50 Hz, 2800 rpm, TEFC, Crompton/Kirloskar make) | |
| Interconnecting ducting | |
| Manometer – to check clogging of bag. | |
| Electric Panel with switch fuse + starter. Base frame | |
| Overall Size | 0.6 x 0.6 x 1.5 m. |
| Empty Weight | 40 Kg |
